Product Overview:

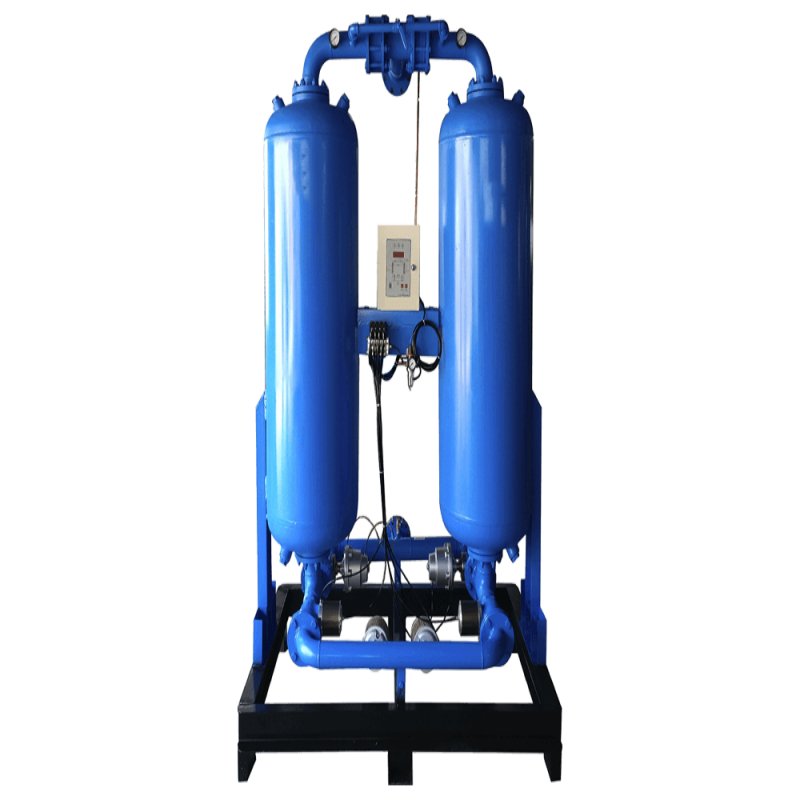

This high-capacity regenerative absorption air dryer is designed for industrial compressed air systems requiring ultra-dry air with -40℃ pressure dew point. Available in both heated and heatless regeneration configurations, this twin-tower desiccant dryer ensures continuous, reliable removal of moisture and contaminants from compressed air.
Key Features:
Capacity: 25m³/min (customizable from 1m³/min to 200m³/min)
Dew Point: -40℃ pressure dew point (optional -70℃ available)
Technology: Twin-tower regenerative adsorption with desiccant media
Regeneration Options:
Heatless: Purge air regeneration, simple design
Heated: External heater reduces purge air consumption
Control System: PLC with touch screen, automatic tower switching
Desiccant: High-quality activated alumina or molecular sieve
Construction: Heavy-duty carbon steel towers with anti-corrosion coating
Pressure Loss: Low pressure drop design for energy efficiency
Operation: Continuous 24/7 operation capability
Benefits:
Ultra-Dry Air: Achieves -40℃ dew point consistently
Energy Efficient: Heated option reduces compressed air loss
Reliable: No CFCs, environmentally friendly drying process
Low Maintenance: Easy desiccant replacement and service access
Flexible: Suitable for various industrial applications
The pics and information showing just for your reference,pls contact us for any items demanded!!
Not only air compressors are sold, but various parts can also be customized for sale.
We can arrange production according to ur part number,pics and drawing!
Product Description
Product Details
NPCC CO., LTD specializes in Industrial Screw & Oil Free Air Compressor . With a deep industry background , one step ahead ambition .
With the professional enthusiasm for Screw & Oil Free Air Compressor, team innovation , to meat the challenges of enterprise's
own determination and the rigorous attitude of excellence,products are strictly in accordance with IOS 9001 international quality procedures,to provide customers with energy -saving and reliable products .
We warmly welcomes people from all around the world to visit the company to guide the establishment of a wide range of business contacts and cooperation .
Packaging and Shipping
models:
1 What trade terms do we provide? What kind of settlement currency do we offer?
Trade term :CIF ,CFR ,FOB,Ex-Works As far Our business traded in Dollars ,Euros and RMB .
2 How long is our delivery?
Our standard delivery time is 30-40 days after confirmation order & receiving recipets for standard compressors, for the other non standard requirement will be discussed case by case.
3 What is the voltage of the compressor?
The available voltage include 380V/50HZ/3Phase, 400V/50HZ/3P, 415V/50HZ/3P, 220V/60HZ/3P, 380V/60HZ/3P, 440V/60HZ/3P. At the same time we provide other voltage according to customer requirement.
4 Can our compressor run in high temperature environment? What is the working temperature range for our machine?
Yes ,our machine would run in high temperature environment ,until now our products have been sold to many countries which wouldmeet high temperature in summer ,such like Iraq, Saudi Arabia, Egypt, Algeria, etc. Work temperature range :1-45 ºC(33.8ºF-113ºF)
5 What's the min. Order requirement ?
Min. Order requirement is 1PCS.
